Tire Carrier Seized Up March 07 2018, 0 Comments

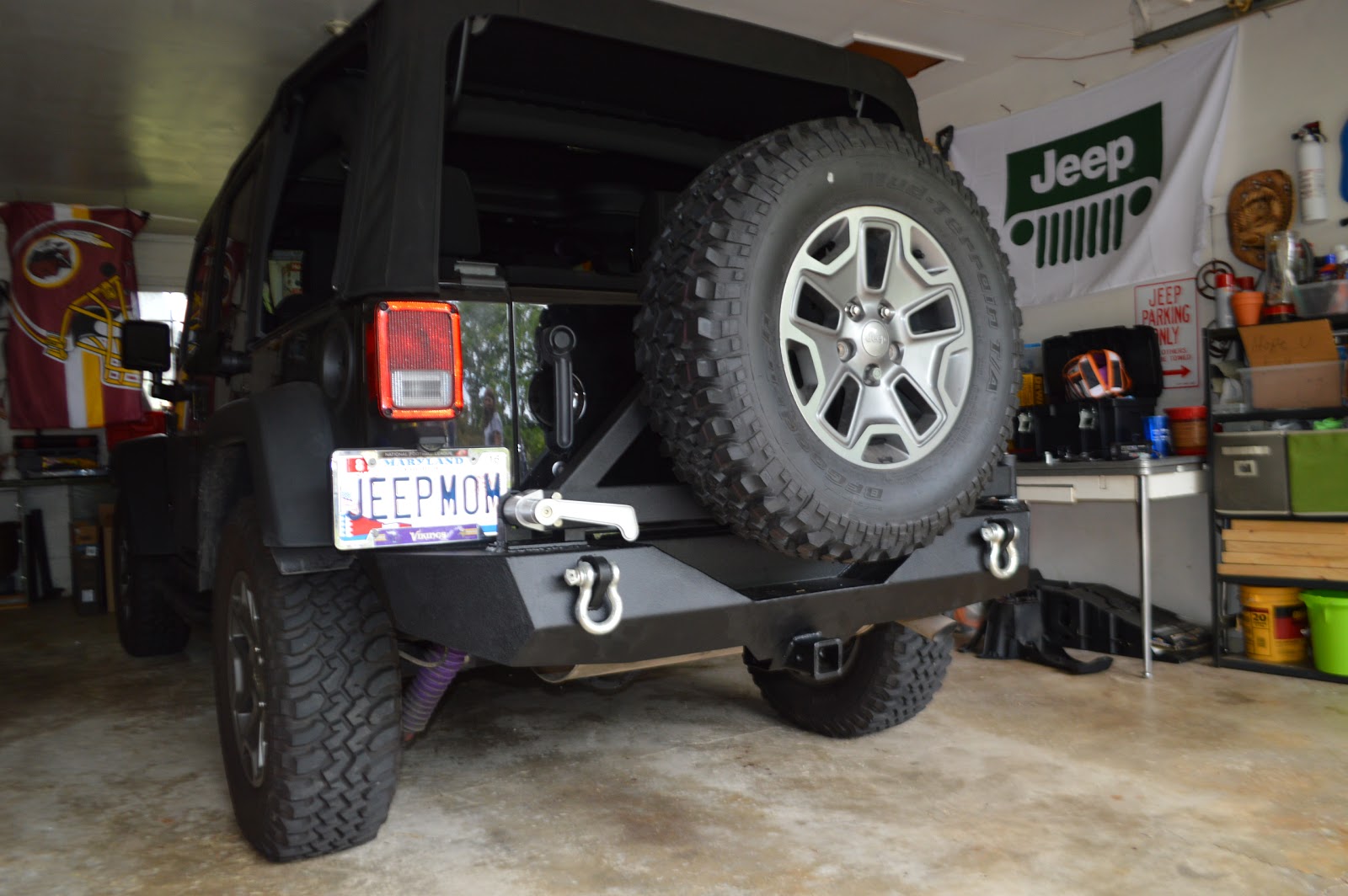

My rear bumper is the Barricade Trailforce HD Bumper with Tire Carrier. It has been on my Rubicon since day one, November 2014.

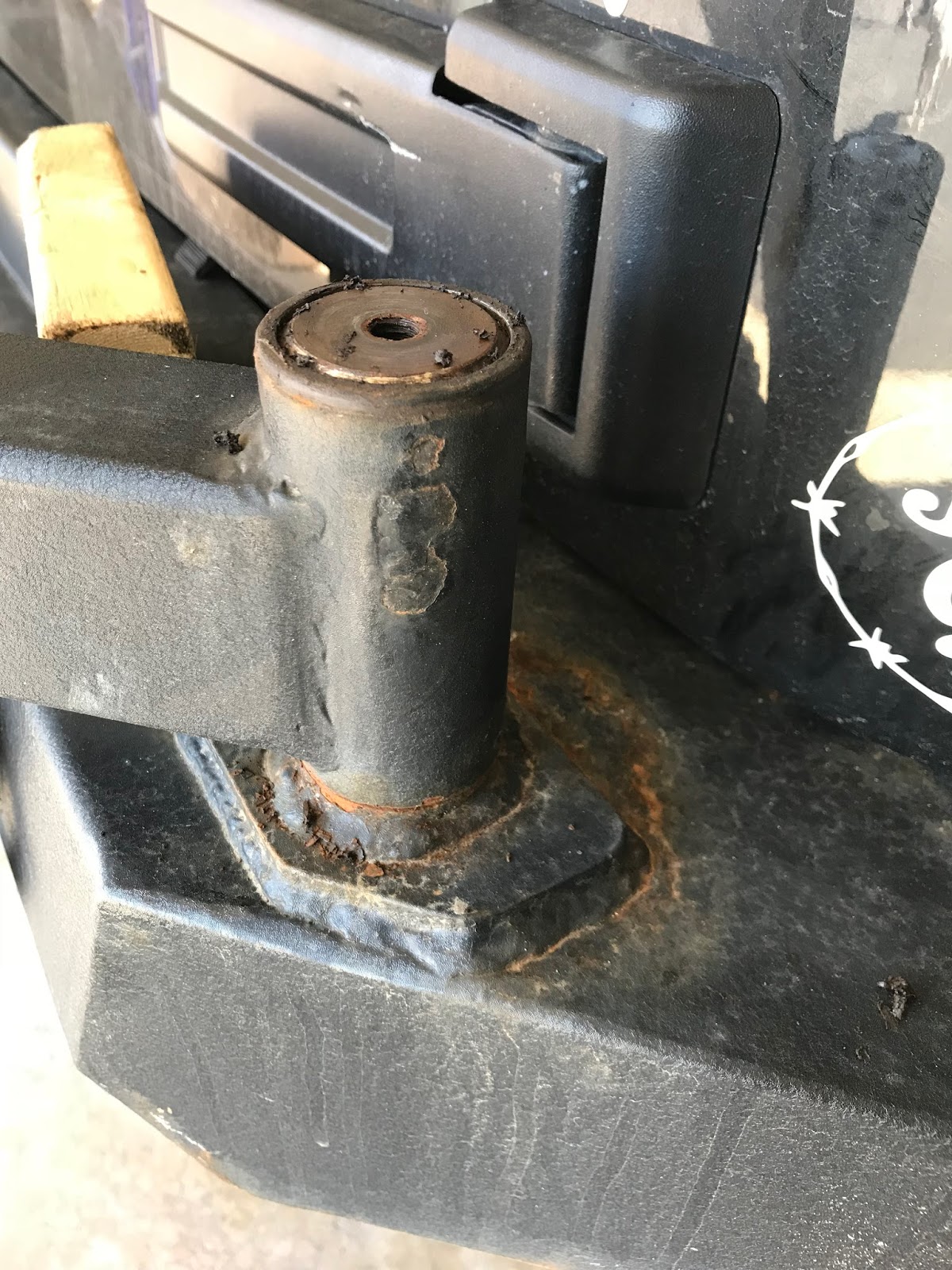

The swing arm attaches to a post which is attached to the bumper. It seized up. Somehow I needed to pull the swing arm off the bumper and re-grease the post. It was not budging!
I sent a text to Jeff from Adrenaline Off Road for some suggestions. I had already been spraying PB Blaster with no luck. Jeff gave me a few more tips.
Here are the steps I took to free the swing arm from the post on my rear bumper.

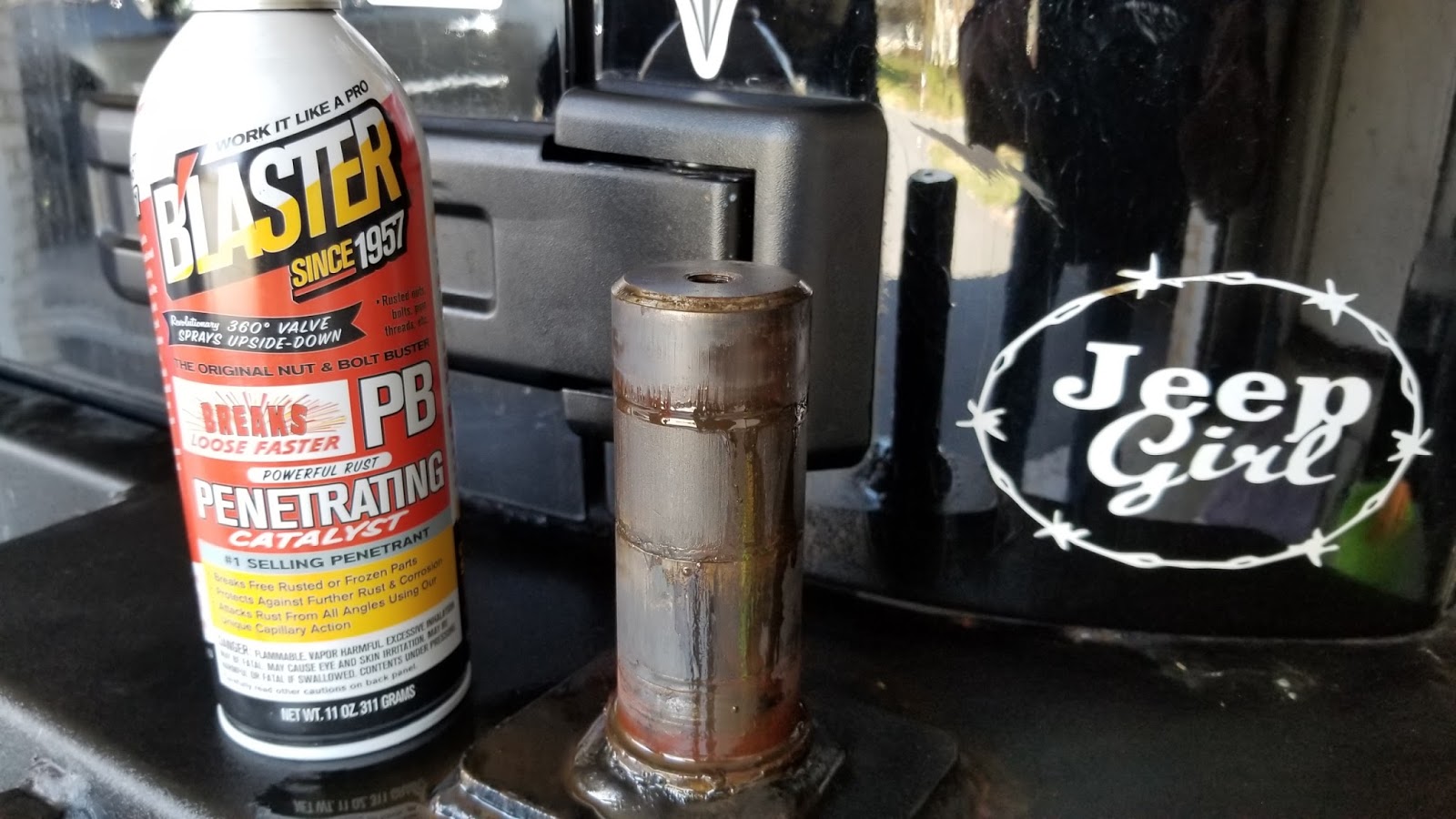

Remove the allen-head bolt and top cap from the post. Using PB Blaster spray the post thoroughly. Let it sit for a couple of minutes, then spray again. Do this several times, then one more just for good measure.
Using a dead blow hammer, tap the swing arm where it connects with the post. I used a cloth so I wouldn't damage the paint. My tap was not gentle.
In between hammer blows I would push the swing arm back and forth. I continued this process many, many times. I would say 10 to 20 times. It still would not budge. So I called my friend Henry for some help. He had a super gi-normous pry bar he said he could bring over. However, I needed to wait until the next morning.

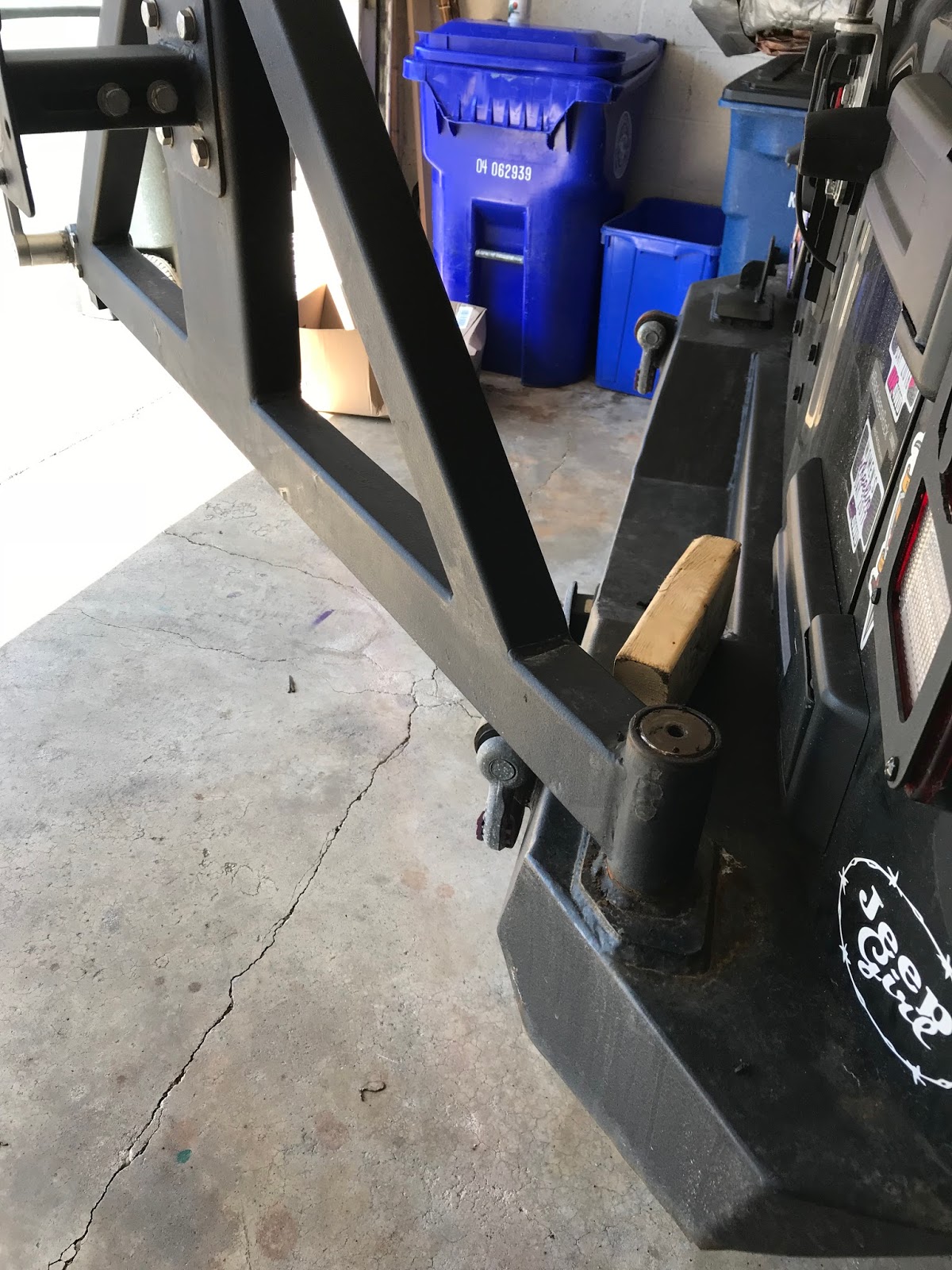

The next morning with the 5 foot pry bar it came right up. So I would say the PB Blaster and hammer blows helped loosen it up. The proper leverage to pull the swing arm straight up from the post made a big difference.
Jeep Momma Tip - At least twice a year do some preventative maintenance by re-greasing your post if you have a spare tire carrier that swings.
I decided it was a good idea to buy my own pry bar. I looked around on Amazon and found a set of three for $87. Check them out, a 5 star review.
